Product Name: Super Static Dyneema® Blended Rope
Brand: Xinda
Model No.: HH-9864
Material: Technora® / Kevlar® / Dyneema® Blend
Color: –
Origin: China
Diameter & Breaking Load:
Ø 7.5 mm — 22 kN
Ø 8.5 mm — 27 kN
Weight:
Ø 7.5 mm — 34 g/m
Ø 8.5 mm — 42 g/m
Structure: 32-strand sheath
Sheath/Core Ratio:
Ø 7.5 mm — Sheath 61.2% / Core 38.8%
Ø 8.5 mm — Sheath 59.8% / Core 40.2%
Elongation: 0% (static rope, no dynamic stretch)

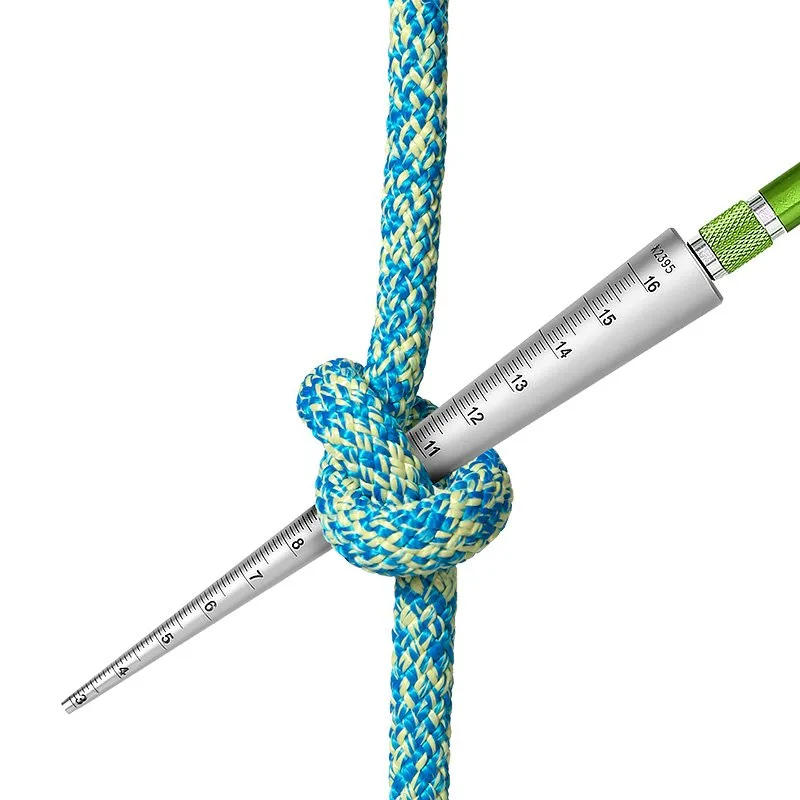

Knotability (K-value):
Ø 7.5 mm — K=1.0
Ø 8.5 mm — K=1.05
Other Properties:
Sheath slippage: 0%
Extension under load: ~1.0–1.3%
Application Scope:
Caving, Mountaineering, Auxiliary Rope for Rigging & Hauling.
⚠ Not to be used as a main rope in fall-arrest scenarios (Prohibited in environments with potential free fall).
Warning: This rope has 0 dynamic elongation. For auxiliary use only. Do not use as a primary rope for fall protection.
